Augmented Reality Working Principle: A Deep Dive into the Digital Overlay

Imagine a world where digital information doesn't just live on a screen but is painted onto the very fabric of your reality, where instructions float over a complex machine you're repairing, historical figures materialize on the street corner you're passing, and the sofa you're considering online appears in your living room, perfectly scaled. This is the promise of augmented reality (AR), a technology not of distant science fiction but of the present day. Its magic lies not in a single trick but in a sophisticated symphony of hardware and software, all orchestrated by a core set of principles that make the virtual feel tangibly real.

The Foundation: Defining the Augmented Experience

At its heart, the augmented reality working principle is about enhancement, not replacement. Unlike its cousin Virtual Reality (VR), which seeks to transport users to a completely digital environment, AR aims to supplement the real world with computer-generated perceptual information. This overlay can engage multiple senses, though the current technological focus is predominantly visual. The core objective is to create a cohesive, interactive experience where digital objects and information coexist and interact with the physical environment in real-time. This seamless integration is the ultimate benchmark for AR systems, and achieving it requires solving a series of complex technological challenges.

The Essential Hardware Triad: Eyes, Ears, and Brain

The physical manifestation of the augmented reality working principle relies on a triad of critical hardware components: sensors, a processor, and a display. Each plays a vital role in the AR pipeline.

Sensors: The Window to the Real World

Sensors act as the system's eyes and ears, continuously gathering data about the user's environment and their position within it. This suite typically includes:

• Cameras: One or more optical cameras capture the live video feed of the user's surroundings. This feed is the canvas upon which digital content will be overlaid.
• Depth Sensors: Time-of-Flight (ToF) sensors or structured light projectors measure the distance to objects in the environment, creating a detailed 3D depth map. This is crucial for understanding geometry and enabling occlusion, where real objects can convincingly pass in front of virtual ones.
• Inertial Measurement Units (IMUs): These micro-electromechanical systems (MEMS), containing accelerometers and gyroscopes, track the rotation, orientation, and acceleration of the device or headset. They provide high-frequency data on movement, which is essential for maintaining stable registration of digital content.
• LiDAR (Light Detection and Ranging): Common in modern devices, LiDAR scanners fire out pulses of laser light and measure the time it takes for them to return, building an extremely precise 3D model of the environment for superior spatial awareness.

Processor: The Digital Brain

The raw data from the sensors is meaningless without interpretation. This is the job of the central processing unit (CPU) and, more importantly, the graphics processing unit (GPU) and specialized processors like a Visual Processing Unit (VPU). This "brain" performs the heavy computational lifting required by the AR software algorithms. It handles the real-time sensor fusion, environmental mapping, tracking, and rendering of complex 3D graphics. The efficiency of this processor directly impacts the latency and realism of the AR experience; any significant delay between a user's movement and the update of the digital overlay can break immersion and cause discomfort.

Displays: The Canvas of Illusion

The display is the final output, the component that actually presents the combined reality to the user. Different AR systems use different methods:

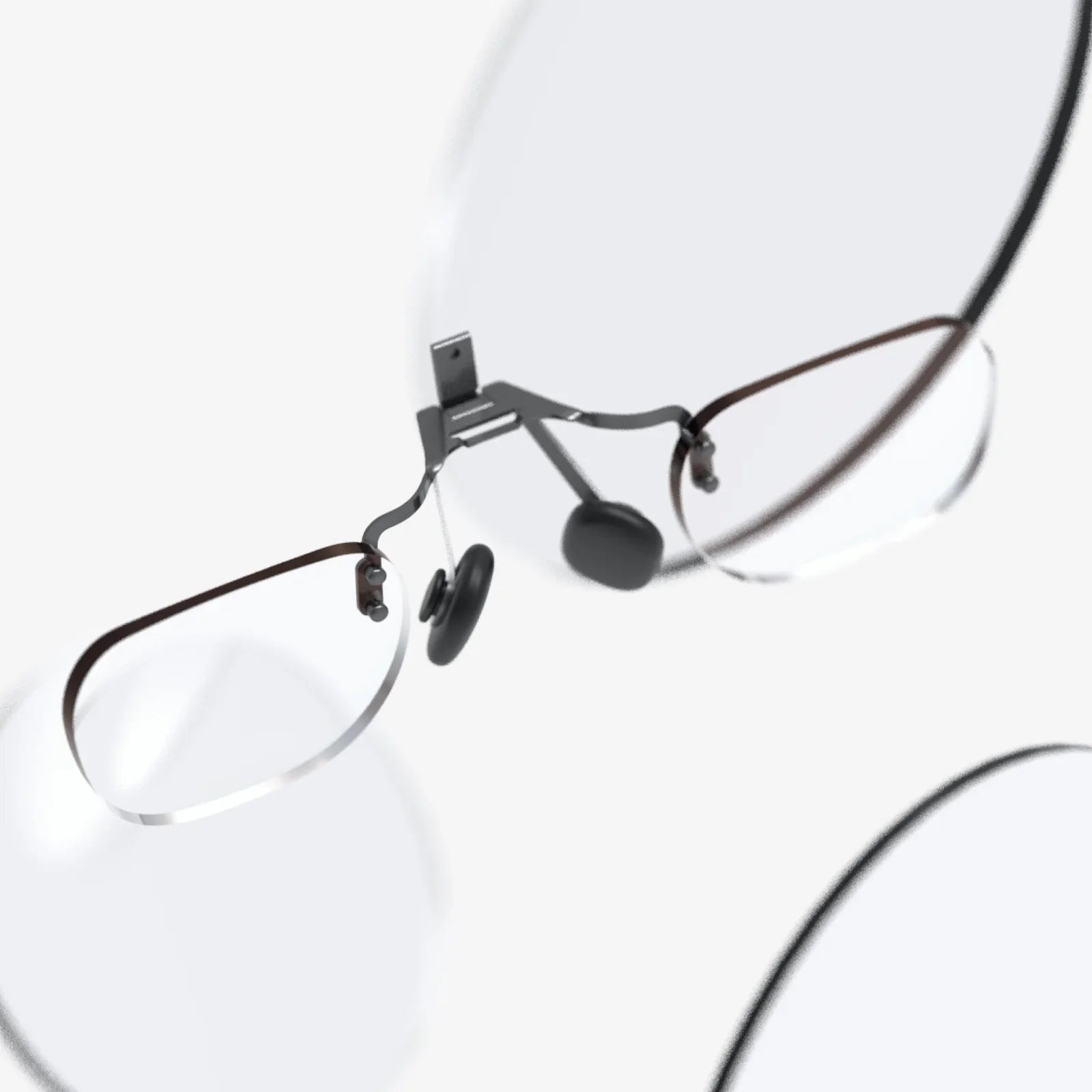

• Optical See-Through (OST): Used in many smart glasses and headsets, OST displays allow users to look directly at the real world through transparent lenses or combiners. Miniature projectors or LEDs then beam light onto these surfaces, making digital images appear to float in the user's field of view. This method preserves a direct, high-resolution view of reality.
• Video See-Through (VST): Common on smartphones and tablets, VST uses the device's camera to capture the real world and then displays the combined video feed (real world + digital overlay) on an opaque screen. This gives the software complete control over the blend but can suffer from a reduced resolution of the real world and a slight lag.
• Retinal Projection: An emerging technology, this method projects light directly onto the user's retina, creating a vivid image that can be overlaid on their natural vision without bulky hardware, offering a potentially wider field of view.

The Core Software Magic: Tracking and Registration

While hardware provides the tools, software executes the fundamental augmented reality working principle. This process can be broken down into a continuous loop of four key stages: tracking, calibration, registration, and rendering.

1. Environmental Perception and Tracking

The first and most critical step is for the system to understand its environment and its own position within it, a concept known as pose estimation. This is achieved through a combination of techniques:

• Model-Based Tracking: The system recognizes a predefined 2D image (like a QR code) or a 3D object (like a machine part). It uses this known "target" or "marker" as an anchor point to calculate its position and orientation relative to it. This is highly reliable but requires pre-programmed knowledge of the target.
• Simultaneous Localization and Mapping (SLAM): This is the holy grail of markerless AR. SLAM technology allows a device to simultaneously map an unknown environment and track its own location within that map in real-time. It does this by identifying unique feature points (corners, edges, textures) in the camera feed and tracking how these points move from frame to frame as the device moves. By triangulating these points, it can construct a sparse 3D point cloud of the environment and pinpoint its own 6-degrees-of-freedom (6DoF) position (x, y, z coordinates and pitch, roll, yaw orientation) within it. SLAM is what enables AR experiences to persist in a room, allowing you to place a virtual character on your coffee table and have it stay there even if you walk away and come back.
• Visual Inertial Odometry (VIO): This is a refinement of SLAM that fuses the visual data from the camera with the high-frequency motion data from the IMU. The camera data is accurate but can be computationally heavy and suffer from motion blur. The IMU data is fast but prone to drift (accumulating small errors over time). VIO elegantly combines them: the IMU provides smooth, rapid tracking between camera frames, while the camera data is used to correct the IMU's drift. This creates a highly robust and accurate tracking system that is the backbone of most modern AR platforms.

2. Calibration and Alignment

For the overlay to be convincing, the digital world's coordinate system must be perfectly aligned with the physical one. This involves calibrating the device's cameras and sensors to understand their intrinsic parameters (like focal length, lens distortion) and extrinsic parameters (their position relative to each other). This calibration ensures that a virtual object placed "one meter away" in the digital space appears exactly one meter away in the real world through the display.

3. Registration: The Moment of Fusion

Registration is the culmination of tracking and calibration. It is the process of anchoring a digital asset to a specific point in the real world with precise position, orientation, and scale. Once the device's pose is known, a transformation matrix is calculated that defines how to project 3D virtual coordinates onto the 2D screen coordinates of the device's display. When this is done correctly, the digital object appears locked in place, obeying the laws of perspective as the user moves. Advanced systems also perform environmental understanding, using the sensor data to identify horizontal planes (floors, tables) and vertical planes (walls), which provides natural surfaces for digital content to rest upon.

4. Rendering and Occlusion: Creating Believability

The final step is to generate the photorealistic graphics and composite them onto the user's view. The GPU renders the 3D model with the correct lighting, shadows, and textures. A crucial aspect of this stage for realism is occlusion—the ability for real-world objects to hide virtual ones. Basic AR might ignore this, making a virtual dog appear to float in front of a real chair leg. Advanced systems use the depth map from the depth sensor or LiDAR to understand the geometry of the scene. The software can then determine which pixels of the virtual object are behind a real object and selectively hide them, making the digital dog convincingly walk behind the chair leg. This subtle effect is paramount for selling the illusion that the two worlds are truly one.

Interaction: Bridging the Digital Divide

A static overlay is only half the story. The true power of AR is unleashed through interaction. The augmented reality working principle extends to interpreting user intent:

• Gesture Recognition: Cameras track hand and finger movements, allowing users to push, pull, rotate, or select virtual objects with natural gestures.
• Voice Commands: Natural language processing enables users to control the experience hands-free, asking questions or issuing commands.
• Gaze Tracking: By knowing where the user is looking, the system can select objects or bring up contextual information without any physical input.
• Haptic Feedback: Wearables can provide subtle vibrations to simulate the sense of touch when a user interacts with a virtual object, further deepening immersion.

Challenges and The Path Forward

Despite rapid advancement, perfecting the augmented reality working principle presents significant hurdles. Achieving photorealistic rendering in real-time on mobile processors requires immense computational power, balancing performance with battery life. SLAM systems can still struggle in featureless environments (blank white walls) or under challenging lighting conditions. For widespread adoption, hardware must become smaller, lighter, more socially acceptable, and far more affordable. Furthermore, creating a universal understanding of the world—a shared "AR cloud" where digital content is persistent and multi-user—is an ongoing area of intense research and development.

The journey into a truly augmented world is just beginning. From the precise fusion of sensor data to the complex algorithms of SLAM and the final pixel-perfect render, the augmented reality working principle is a breathtaking feat of modern engineering. It’s a technology that is quietly dissolving the barrier between the atoms of our world and the bits of our digital imagination, promising to fundamentally reshape how we work, learn, play, and connect with the reality around us. The next time a digital dinosaur stomps through your living room or a navigation arrow hovers over the road ahead, you'll see not just magic, but the intricate and brilliant symphony of technology making it all possible.
