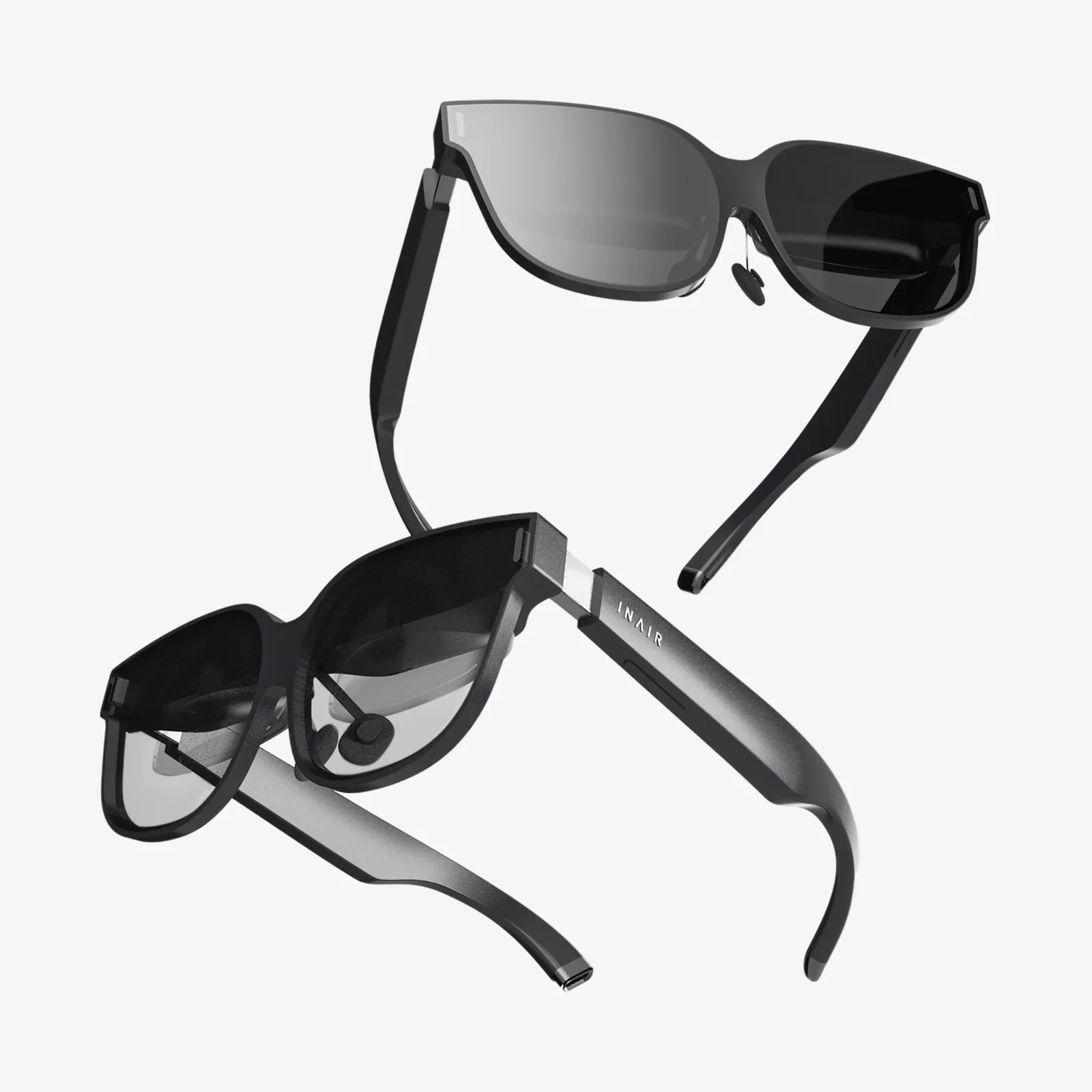

How to Make Augmented Reality Glasses: A Comprehensive DIY Guide

The world is on the cusp of a visual revolution, and the gateway to this new digital dimension is perched right on the bridge of your nose. Imagine crafting the very lenses through which digital information seamlessly blends with physical reality, transforming your perception of the world around you. Building your own augmented reality glasses is not just a complex technical project; it's a journey into the future of human-computer interaction, offering an unparalleled understanding of the technology poised to change everything from how we work to how we play. This guide will demystify the process, equipping you with the knowledge to assemble a functional prototype and see the world through a new, augmented lens.

The Foundation: Understanding AR Optics

Before soldering a single wire or writing a line of code, it's crucial to grasp the core challenge of AR glasses: projecting a digital image from a tiny screen in front of your eye while allowing you to see the real world clearly behind it. This is the domain of optical combiners, the heart of any AR system.

Optical Combiner Technologies

There are several ways to achieve this blending of light, each with its own trade-offs in complexity, cost, and image quality for a DIY project.

• Birdbath Optics: This is one of the most accessible designs for hobbyists. It uses a beamsplitter (a semi-transparent mirror) set at a 45-degree angle between the display and the eye. Light from the micro-display is reflected off this beamsplitter and then off a concave mirror (the "birdbath") before entering the eye. This design offers a relatively wide field of view but can be bulkier than other options.
• Waveguide Technology: Commonly used in commercial products, waveguides are thin, transparent substrates that use diffraction gratings to "pipe" light from a projector on the temple of the glasses into the eye. While offering a sleek form factor, creating custom waveguides is extremely complex and cost-prohibitive for most DIY endeavors.
• Reflective Freeform Optics: This method uses complex, non-symmetrical mirrors (freeform mirrors) to fold the optical path and project the image. It can be highly efficient but requires precise manufacturing of custom optical elements.
• Holographic Optical Elements (HOEs): HOEs use holographic film to act as a selective mirror, reflecting only a specific wavelength of light (e.g., the red, green, and blue from your display) while allowing all other light to pass through. This can yield very transparent optics but again involves specialized materials.

For a first-time builder, a birdbath optical design is highly recommended due to the availability of off-the-shelf components like beamsplitters and small concave mirrors.

Sourcing the Core Hardware Components

An AR headset is a symphony of miniaturized technology. Sourcing the right components is the most critical step in the entire process.

1. The Micro-Display

This is the tiny screen that generates the digital image. Your primary options are:

• OLED-on-Silicon Microdisplays: Offer exceptional contrast, true blacks, and fast response times. They are often very small (around 0.5 inches) but provide a high-resolution image that is then magnified by the optics.
• LCD Microdisplays: A more cost-effective alternative, though they may suffer from lower contrast ratios and potential motion blur compared to OLED.
• LCoS (Liquid Crystal on Silicon): A reflective technology that can offer high resolution and good color fidelity, often requiring a brighter external light source.

Key specifications to consider are resolution (at least 720p per eye is desirable), brightness (nits), and size.

2. The Optical Engine and Combiners

This encompasses the lenses, beamsplitters, and mirrors that make up your chosen optical design. You will need:

• Beamsplitter Cube or Plate: A 50/50 or 70/30 (reflectance/transmittance) beamsplitter is common. A cube is easier to mount securely.
• Curved Mirror: For a birdbath design, a small, high-quality concave mirror is needed.
• Prescription Lenses (Optional): If you require vision correction, you can have the optical assembly mounted onto prescription lenses or use custom inserts.

3. The Processing Unit

AR is computationally intensive. You cannot run it off a simple microcontroller. You need a full Single-Board Computer (SBC) capable of handling graphics rendering, sensor data fusion, and computer vision tasks.

• Raspberry Pi CM4: A powerful and compact module, ideal for embedding into a glasses form factor. It requires a separate carrier board.
• Jetson Nano: Offers superior GPU performance for machine learning and computer vision tasks, which is beneficial for advanced AR applications.

4. Sensors for Tracking

For the digital content to stay locked in place in the real world, the glasses must understand their own position and orientation.

• IMU (Inertial Measurement Unit): A combination of a gyroscope, accelerometer, and magnetometer. This provides high-frequency data on rotation and movement (6-DoF orientation tracking). A common module is the MPU-9250 or BNO085.
• Camera: A small, global shutter camera module is essential for computer vision. It is used for more precise positional tracking (6-DoF), marker recognition, and understanding the environment. The Raspberry Pi Camera Module v3 is a good option if using a Pi.
• Depth Sensor (Optional): Sensors like the Intel RealSense or stereoscopic camera setups can provide a 3D map of the environment, enabling occlusion (digital objects hiding behind real ones) and advanced interaction.

5. Power and Connectivity

• Battery: A small, high-density lithium-polymer (LiPo) battery is necessary. Capacity (mAh) will be a direct trade-off with weight and runtime. Expect 1-2 hours for a compact design.
• Wi-Fi/Bluetooth Module: Built into most SBCs, this is needed for data transfer, debugging, and connecting to peripherals.

The Software Stack: Bringing the Hardware to Life

Hardware is useless without software. The software pipeline for AR is complex, but open-source frameworks have made it more accessible.

Choosing a Development Framework

• WebXR + A-Frame/Three.js: This is arguably the easiest entry point. You can develop AR experiences using web technologies (JavaScript) and run them in a browser like Chrome on your SBC. It simplifies development but may have performance limitations and less access to low-level sensor data.
• Open-Source SDKs:
  • OpenXR: An open, royalty-free standard that provides native access to a wide range of AR/VR devices. It's more complex but offers high performance and portability.
  • ARToolKit: One of the oldest open-source AR libraries, excellent for marker-based tracking.
  • SLAM Libraries: For markerless tracking, you need a Simultaneous Localization and Mapping (SLAM) solution. Open-source options like ORB-SLAM3 or OpenVSLAM are incredibly powerful but require significant expertise in C++ and computer vision to integrate.

The Software Pipeline

1. Sensor Fusion: Data from the IMU (fast but drifty) and the camera (accurate but slow) is fused together using algorithms (often a Kalman Filter) to create a smooth, accurate, and high-frequency estimate of the headset's position and rotation in space.
2. Environment Understanding (SLAM): The camera feed is processed to identify feature points in the environment. By tracking how these points move from frame to frame, the software constructs a sparse map of the room and precisely locates the glasses within it.
3. Rendering: The 3D graphics engine (e.g., Unity, or a WebGL-based one) uses the tracking data from steps 1 and 2 to render the digital content from the correct perspective. This image is then sent to the micro-display.
4. Interaction: Basic interaction can be handled via a Bluetooth controller or voice commands. For hand tracking, you would need an additional software layer using the camera feed and libraries like MediaPipe.

Step-by-Step Assembly Guide

Warning: This process requires advanced skills in soldering, 3D modeling/printing, and programming. Always exercise caution when working with lithium batteries and powerful miniature lasers (if used in some display systems).

Phase 1: Prototyping on a Bench

1. Assemble the Optical Path: Using optical mounting posts, build your chosen optical design (e.g., birdbath) on an optical breadboard. Align the micro-display, beamsplitter, and mirror until you get a clear, focused image projected to infinity. Measure the distances and angles precisely.
2. Connect the SBC and Display: Get your single-board computer running a basic OS. Connect the micro-display (usually via DSI or HDMI) and ensure you can output a test pattern to it.
3. Integrate Sensors: Solder the IMU to a breakout board and connect it to the SBC's I2C or SPI bus. Connect the camera module. Write simple scripts to read data from the IMU and capture images from the camera.
4. Basic Software Integration: Choose your framework. Start by displaying a simple 3D cube using the engine of your choice. Then, try to map the IMU's rotation data to the camera's rotation in the 3D scene, creating a basic head-tracking demo.

Phase 2: Mechanical Design and Integration

1. 3D Modeling: Using measurements from your optical bench prototype, create a 3D model of the glasses frame in CAD software (e.g., Fusion 360, SolidWorks). The model must have precise mounts for:
   • The optical combiner assembly
   • The micro-display and its driver board
   • The SBC and its carrier board
   • The battery
   • The camera and IMU module
   • Wiring channels and ventilation
2. 3D Printing: Print the frame and all mounting components using a high-resolution FDM or resin (SLA) 3D printer. Use a durable material like ABS, PETG, or nylon. You will likely go through several iterations to get a perfect fit.
3. Final Assembly: Carefully transfer all components from the optical bench into the 3D-printed frame. Secure all boards with screws. Route all wires neatly and secure them with Kapton tape or zip ties. Connect the battery last.

Phase 3: Calibration and Refinement

1. Optical Calibration: The image must be aligned for both eyes (if building a stereoscopic version) and distortion must be corrected. This involves displaying a calibration pattern and using software to apply a distortion mesh or shader to pre-warp the rendered image, counteracting the lens distortions.
2. Sensor Calibration: Calibrate the IMU to remove bias and drift. This process involves collecting sensor data while the device is stationary in multiple orientations.
3. System Testing: Run your AR software and test for stability, latency, and accuracy. The single biggest challenge will be achieving low motion-to-photon latency (under 20ms) to prevent simulator sickness. This requires highly optimized code.

Limitations and Future Iterations

Your first prototype will be a testament to your skill, but it will have limitations compared to commercial products. Expect it to be heavier, with a narrower field of view, lower battery life, and less robust tracking. However, this project provides the foundational knowledge to iterate. Future versions could explore:

• Lighter materials like carbon fiber.
• Custom PCBs to reduce size and weight instead of using breakout boards.
• Integration of eye-tracking for foveated rendering (drastically reducing processing power).
• Experimenting with different optical schemes like pinlight arrays or retinal projection.

The line between science fiction and reality is thinner than you think, and it's a line you are now equipped to draw yourself. This journey from understanding light's behavior to fusing digital and physical worlds culminates in a device that is uniquely yours, a keyhole into a layer of existence hidden to everyone else. The knowledge you've gained transcends a simple hobbyist build; it's a foundational insight into the next platform of computing. While commercial giants pour billions into perfecting this technology, your hands-on experience provides a deep, intuitive understanding that no spec sheet can match. Now, put them on, look around, and step into the world you've built.
